Description

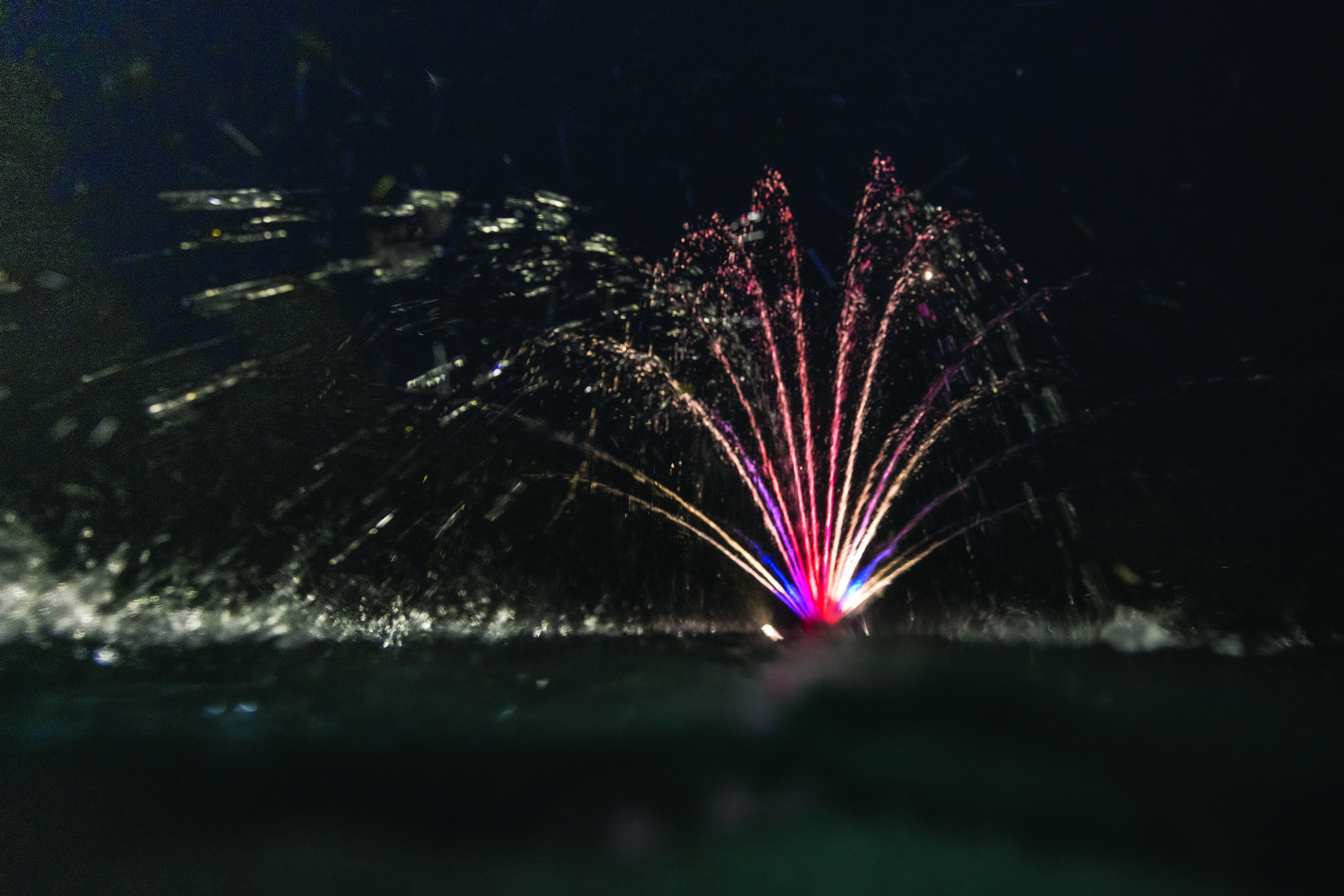

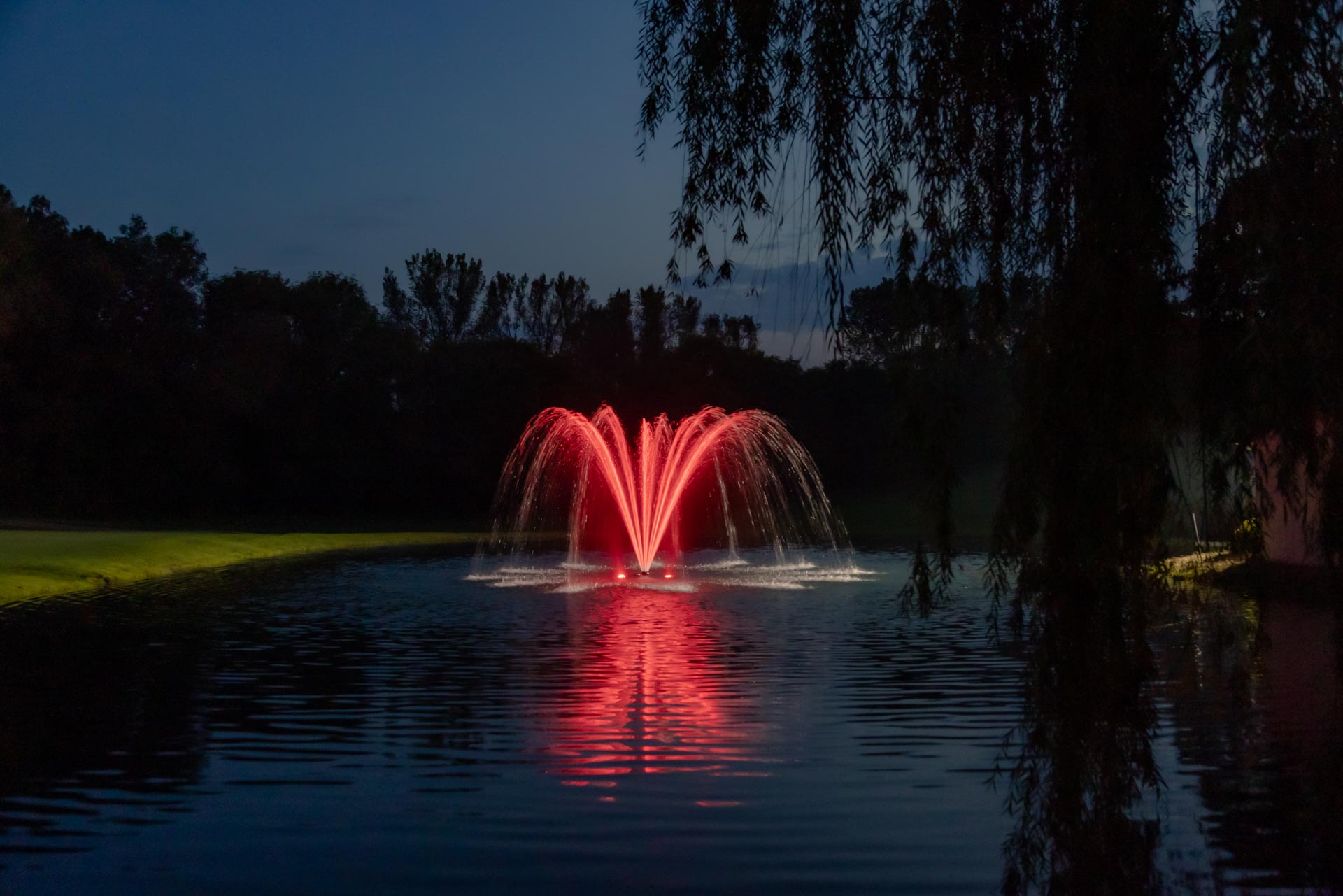

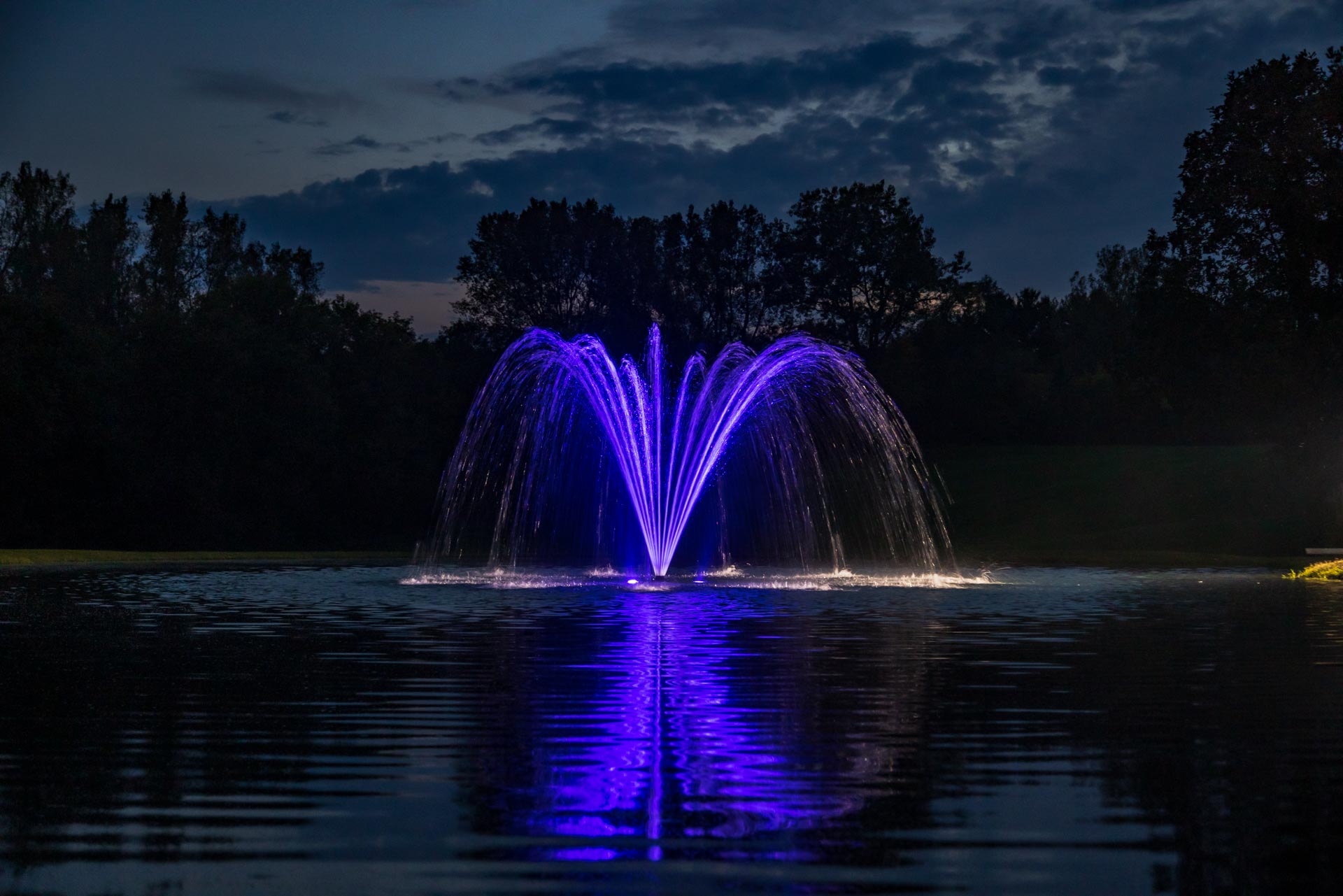

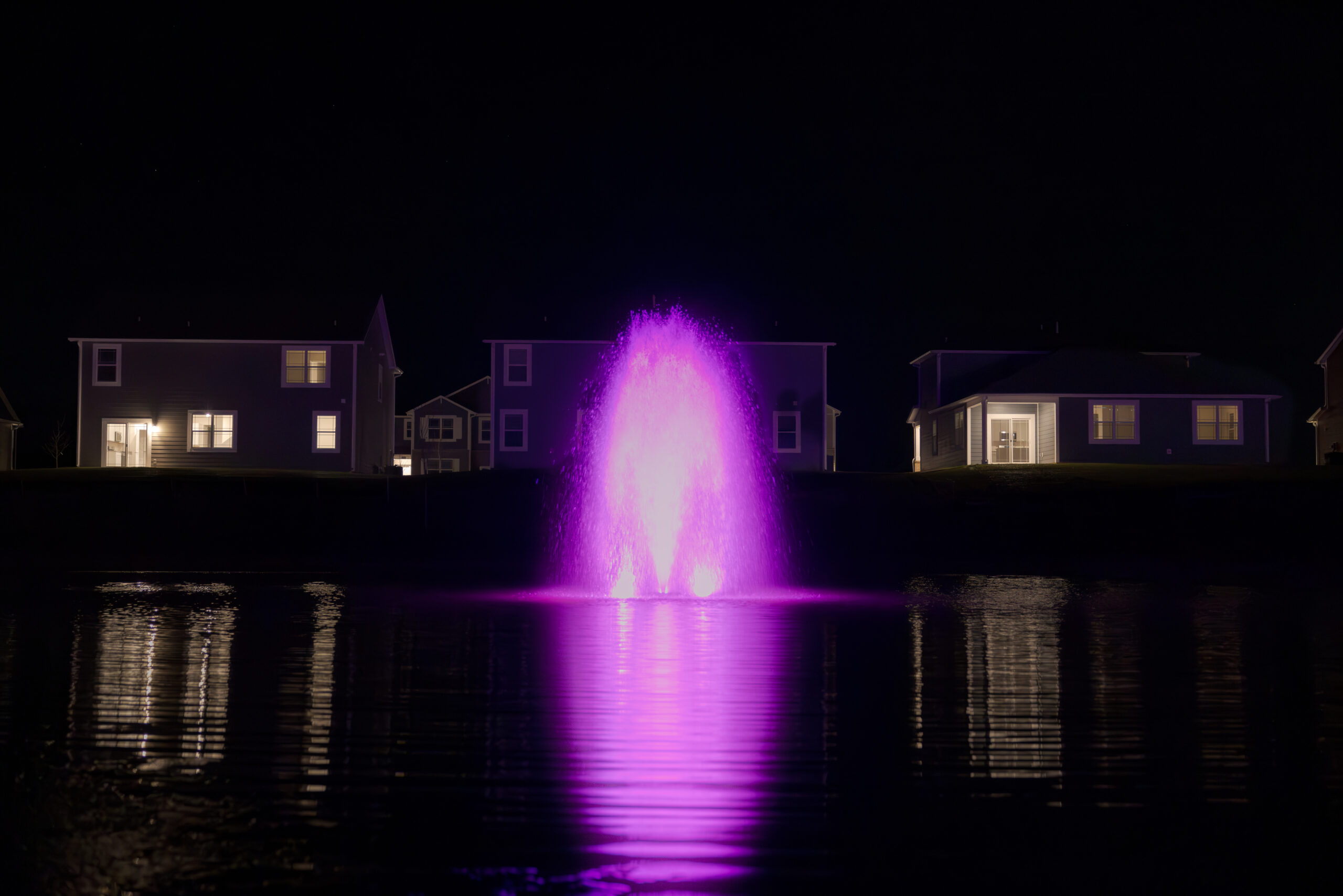

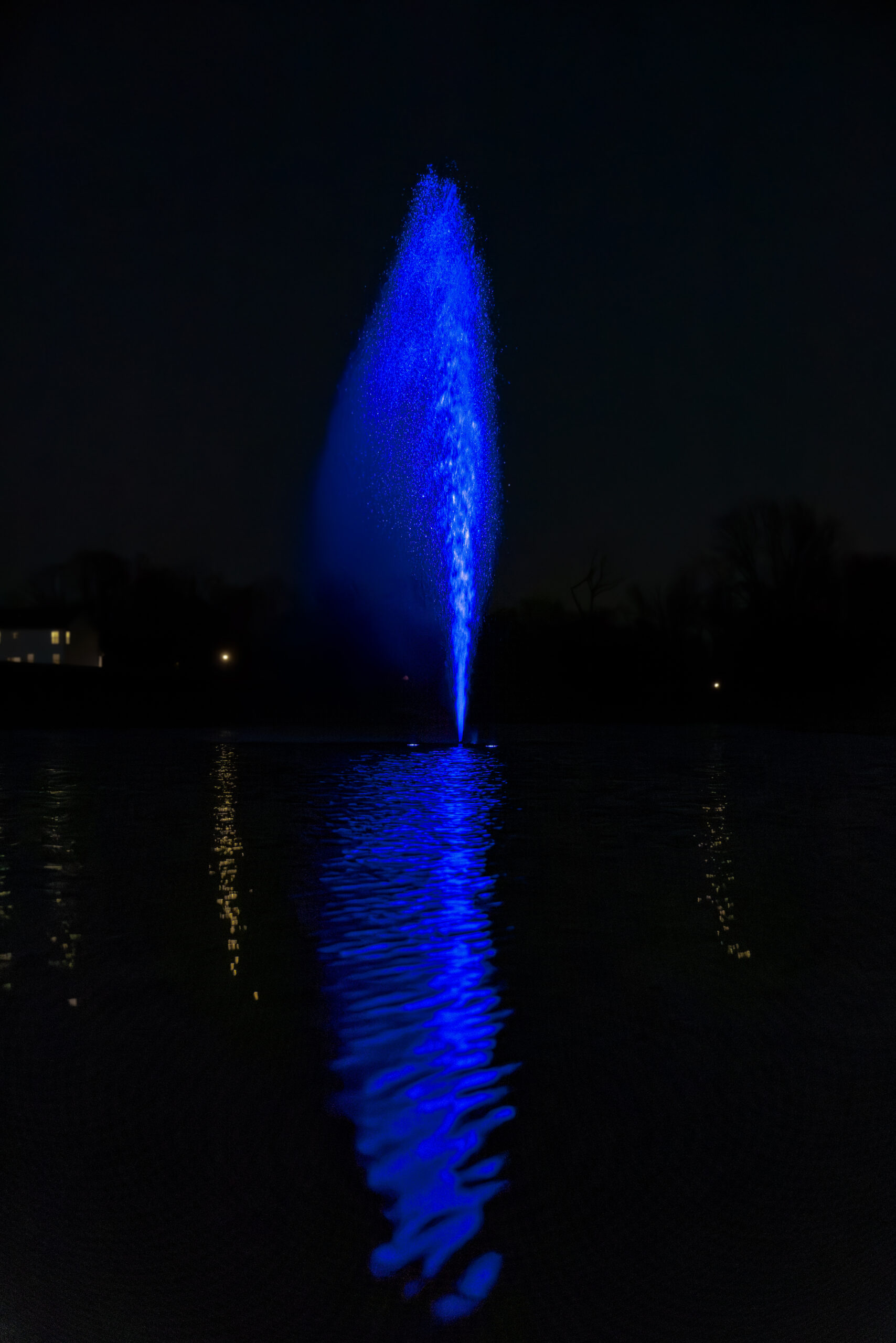

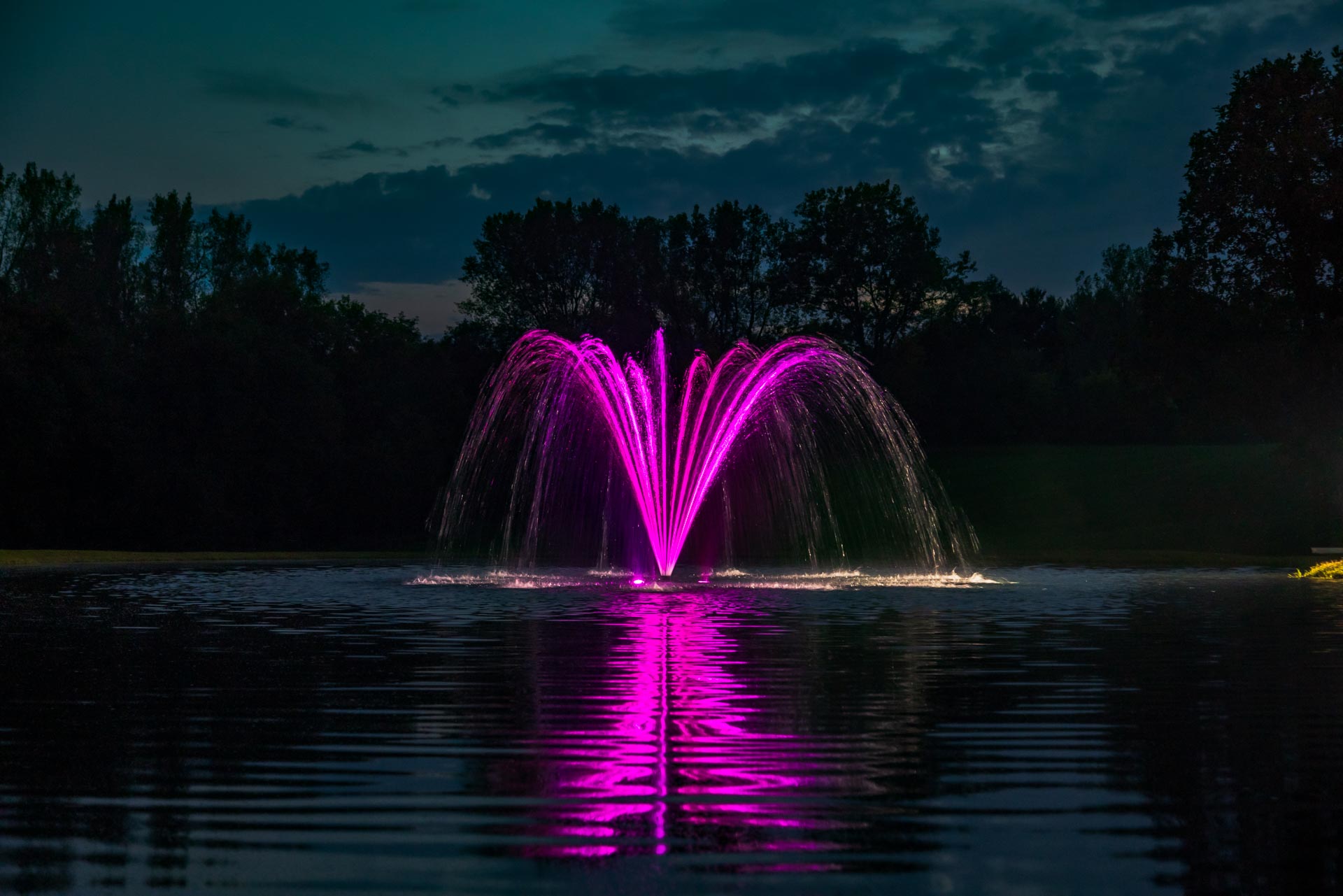

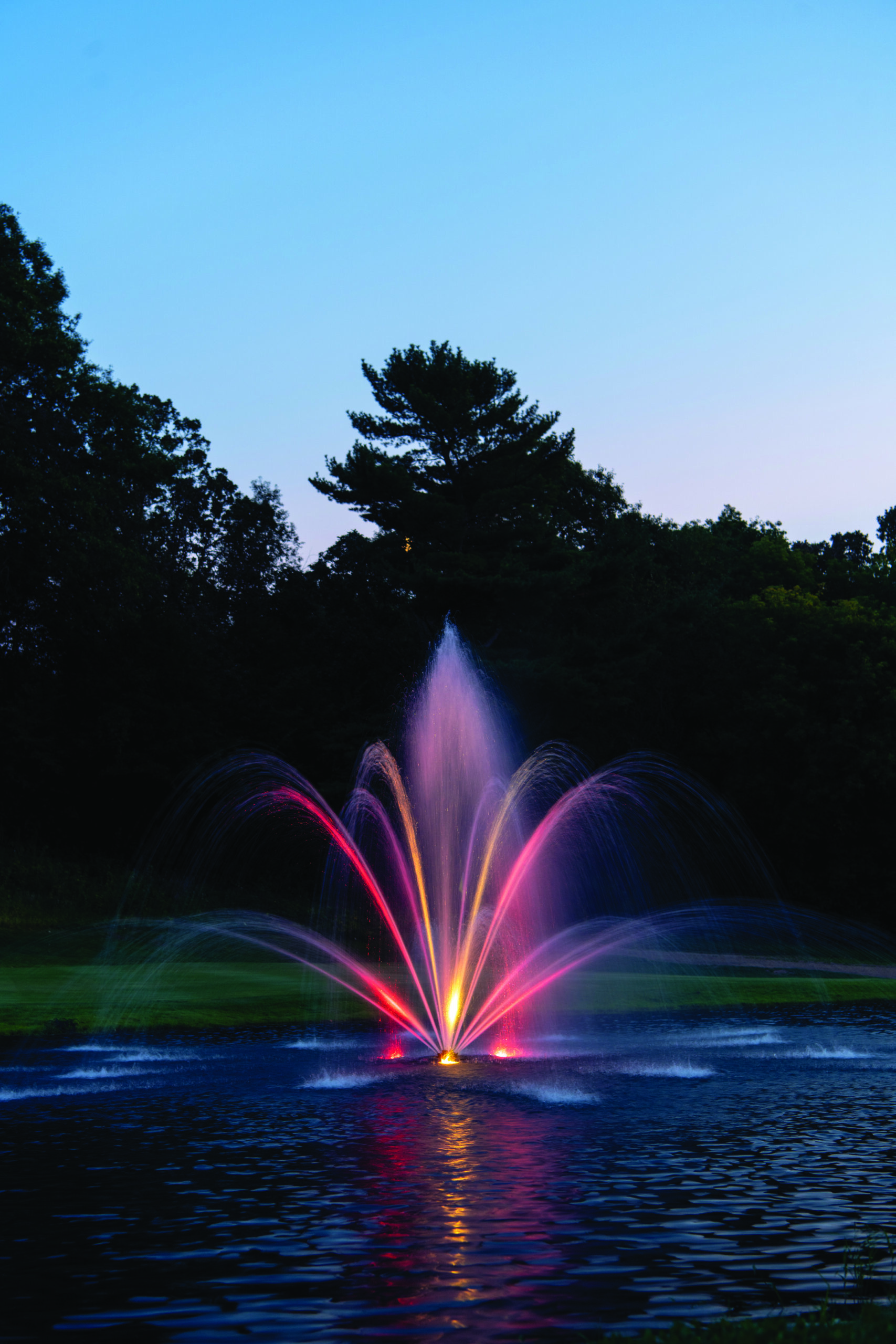

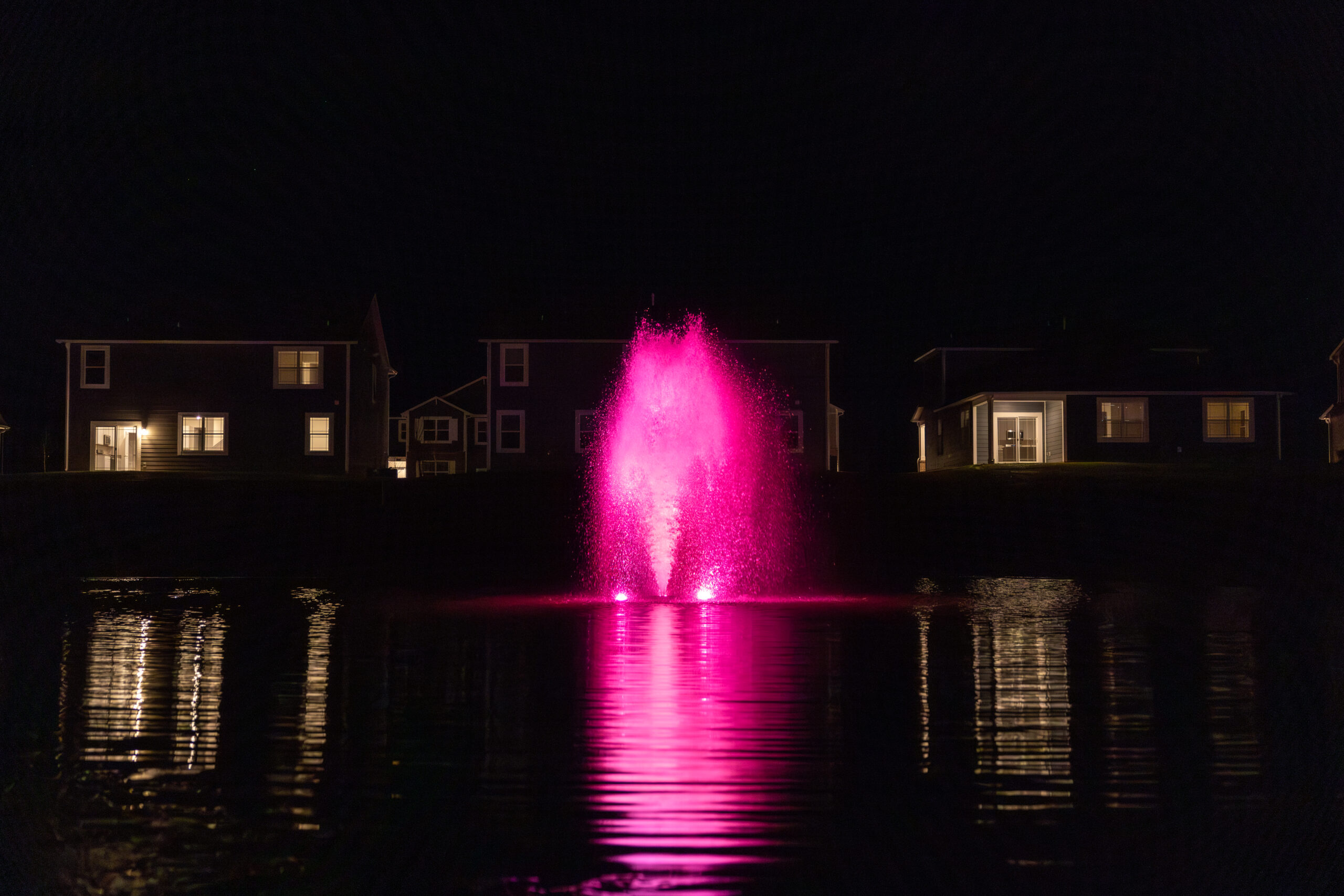

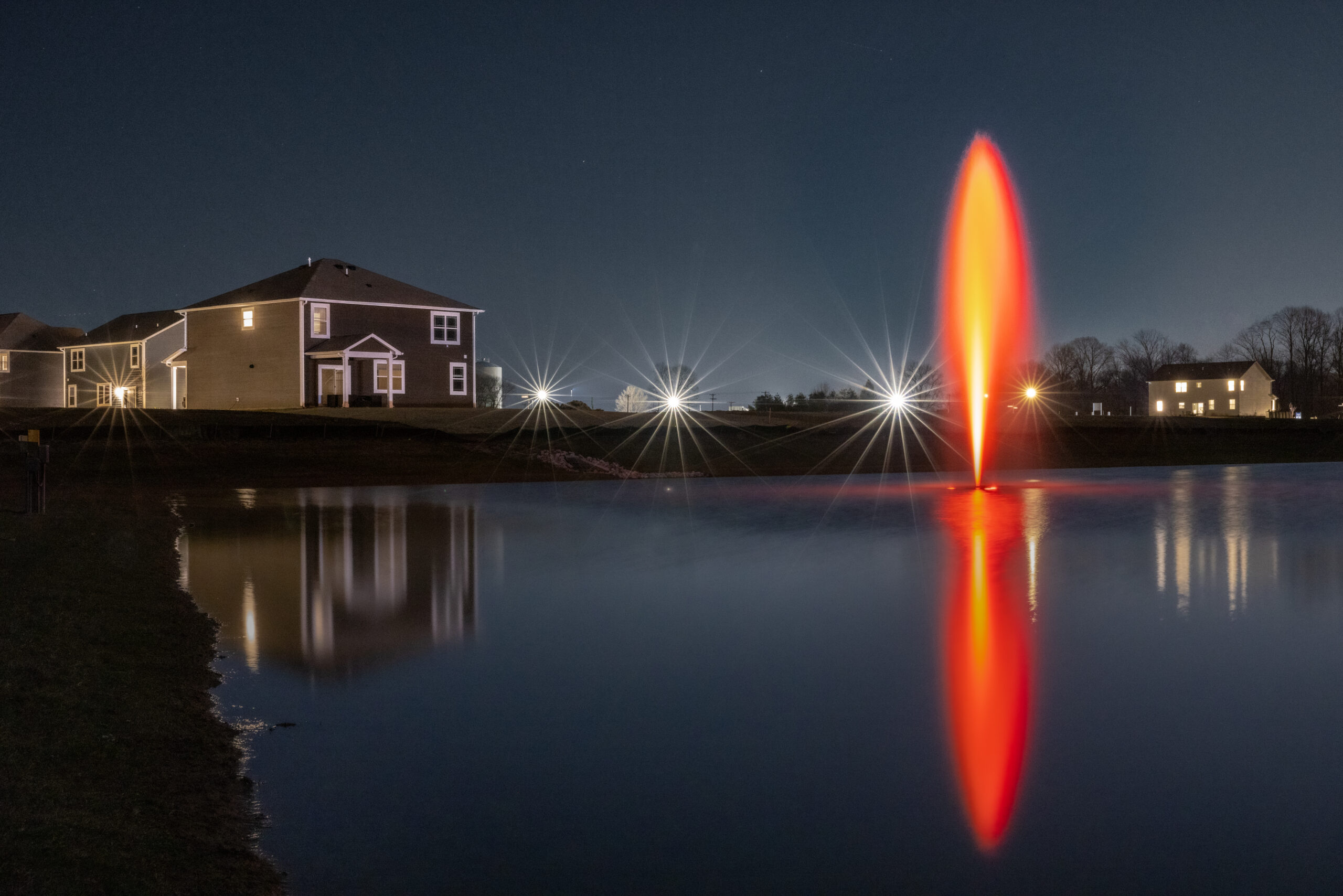

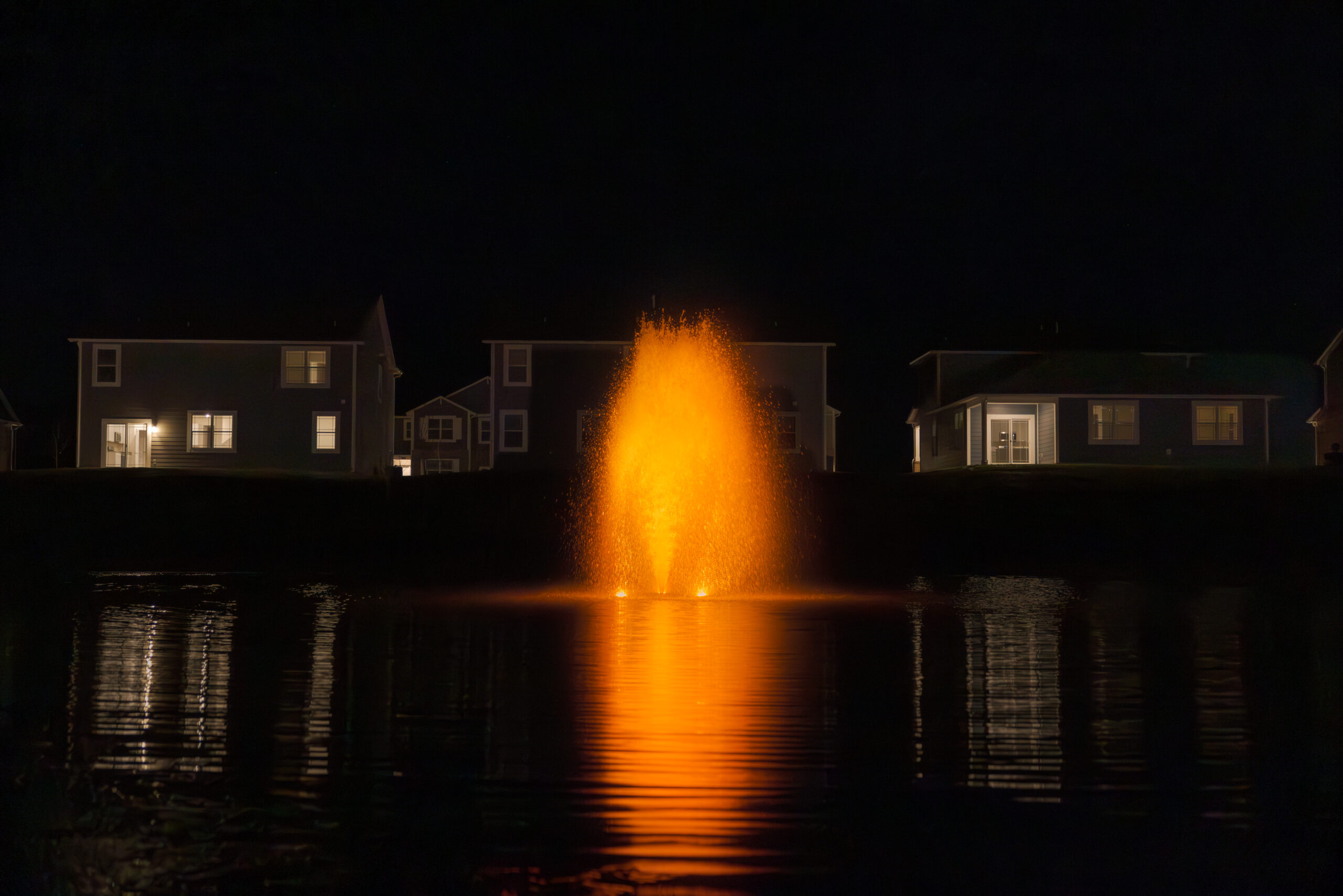

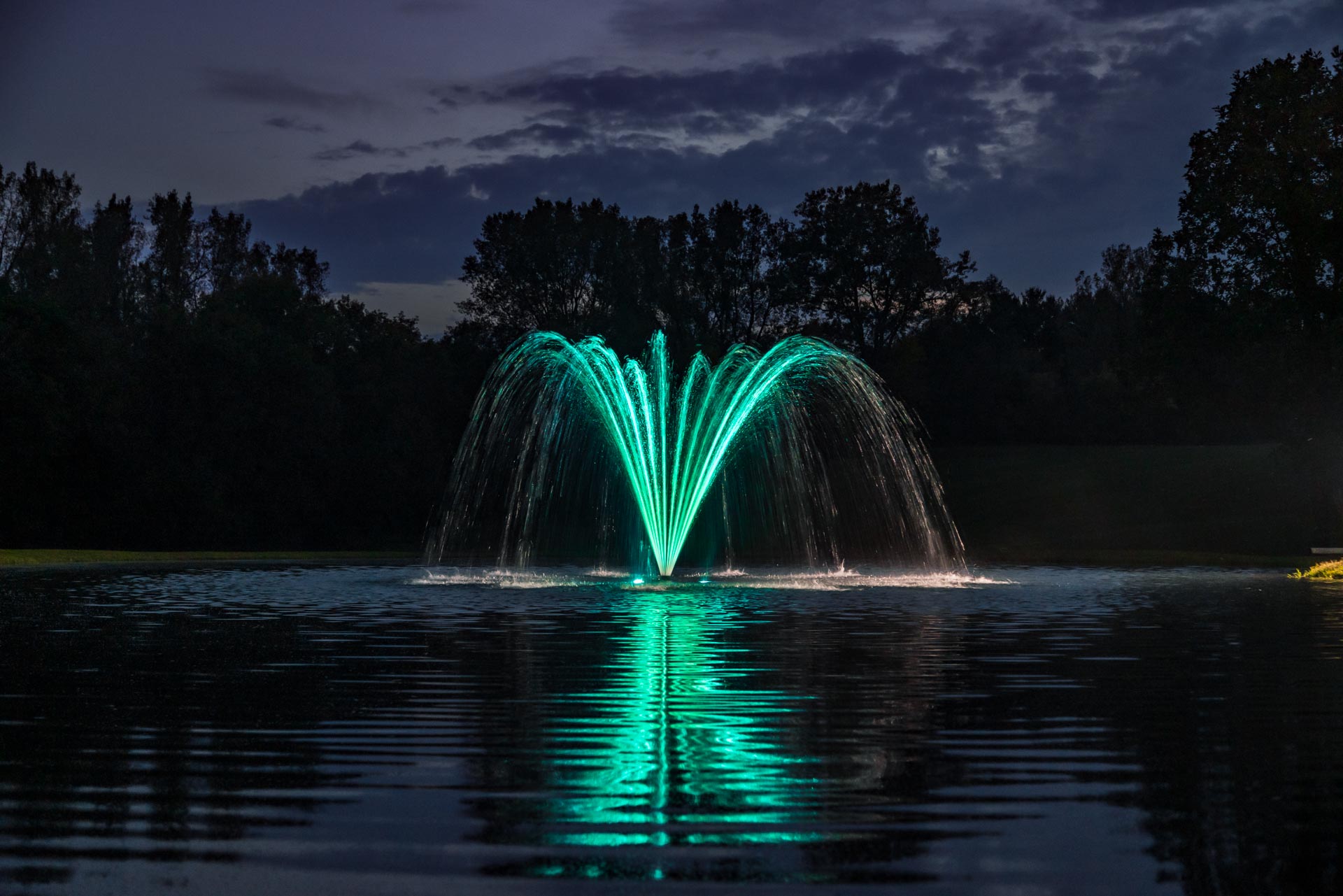

Kasco’s RGBW40 LED WaterGlow Lighting Systems are controlled with Wi-Fi or a push-button controller and add rich color to any evening display. Featuring 36 pre-programmed settings and DMX-addressable fixtures, these kits provide a customizable, inspiring visual display.
These kits utilize durable stainless steel fixtures for watertight operation.
Available for J Series Fountains, VFX Fountains, and Surface Aerators in 2-, 3-, or 4-fixture kits.
Warranty period: 5 years
RGBW40 LED: Delux DMX Lighting System

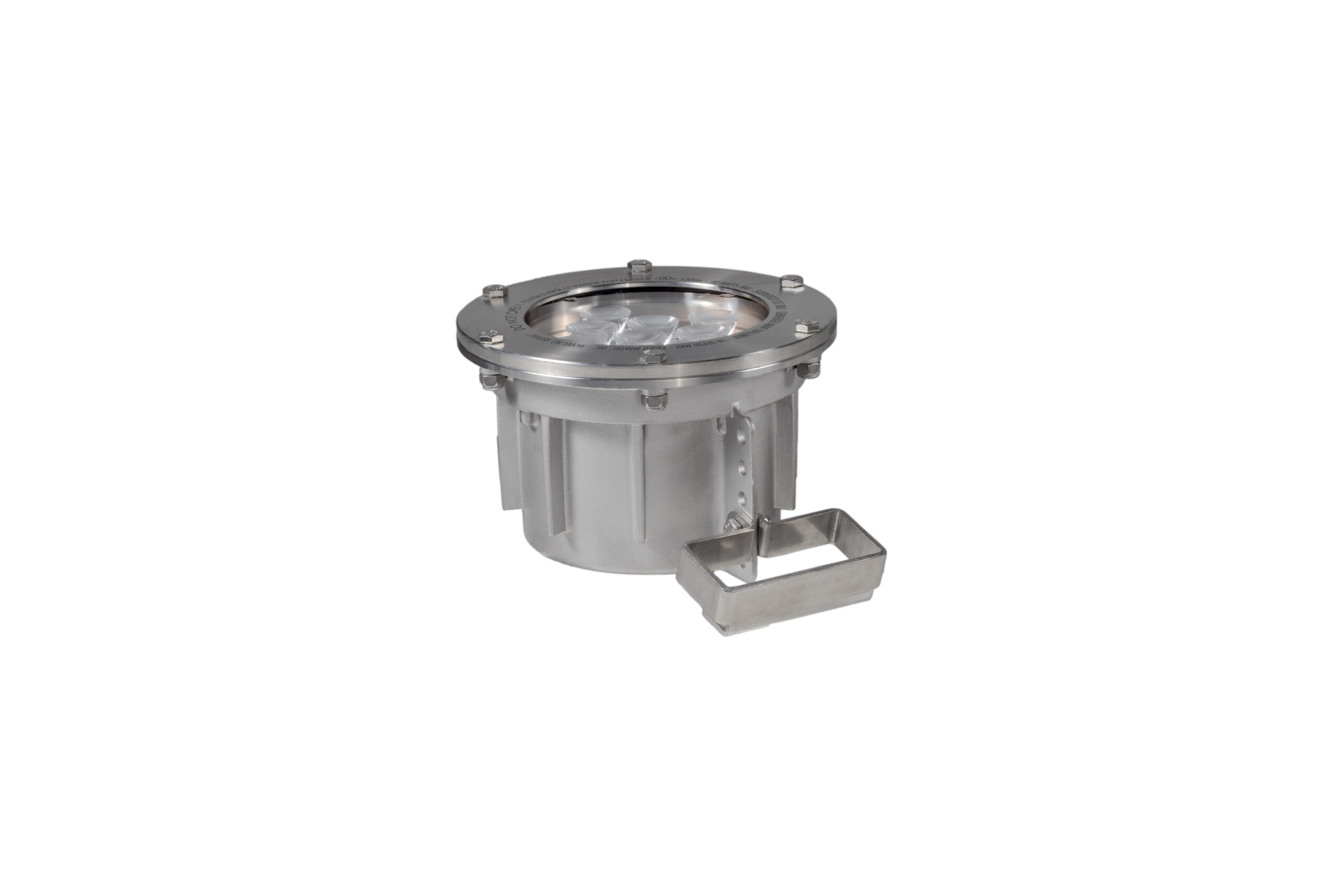

- Includes fixtures, brackets, power cord with quick disconnect, and control panel

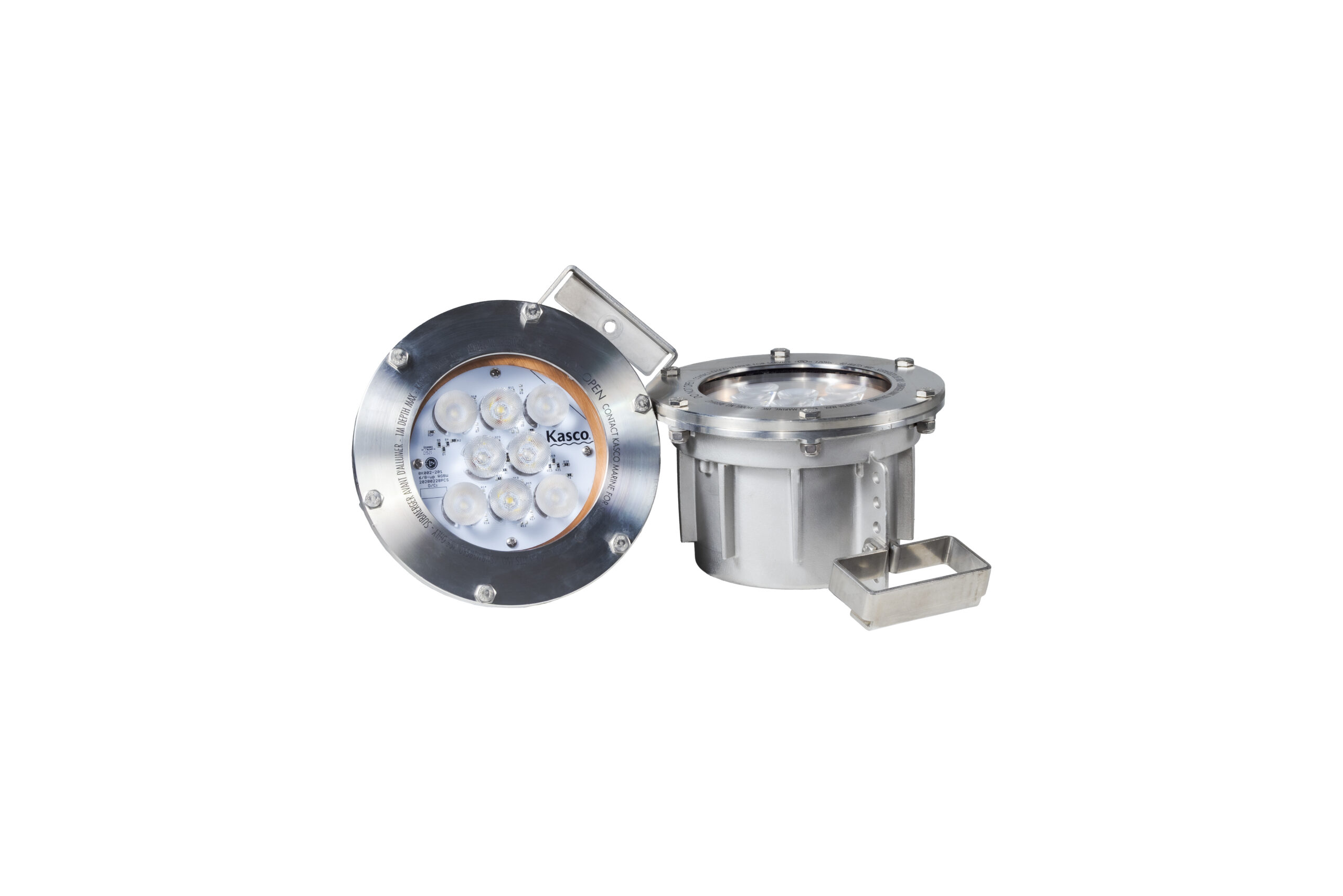

- 2-, 3-, and 4-fixture kits available in multiple power cord lengths
- Runs on 120Vac power
Wi-Fi Enabled Packages
Use the touchpad inside the panel or download the app* on your mobile device to control color, sequencing patterns, and power.
Push-Button Packages
Use the push-button controller inside the panel or included short-range remote to cycle through color, sequencing patterns, and power.
Features:
- 36 pre-programmed settings (ranging from single static colors to holiday patterns)
- 2-, 3-, and 4-fixture kits available in multiple power cord lengths
- Perfect for fountains or surface aerators

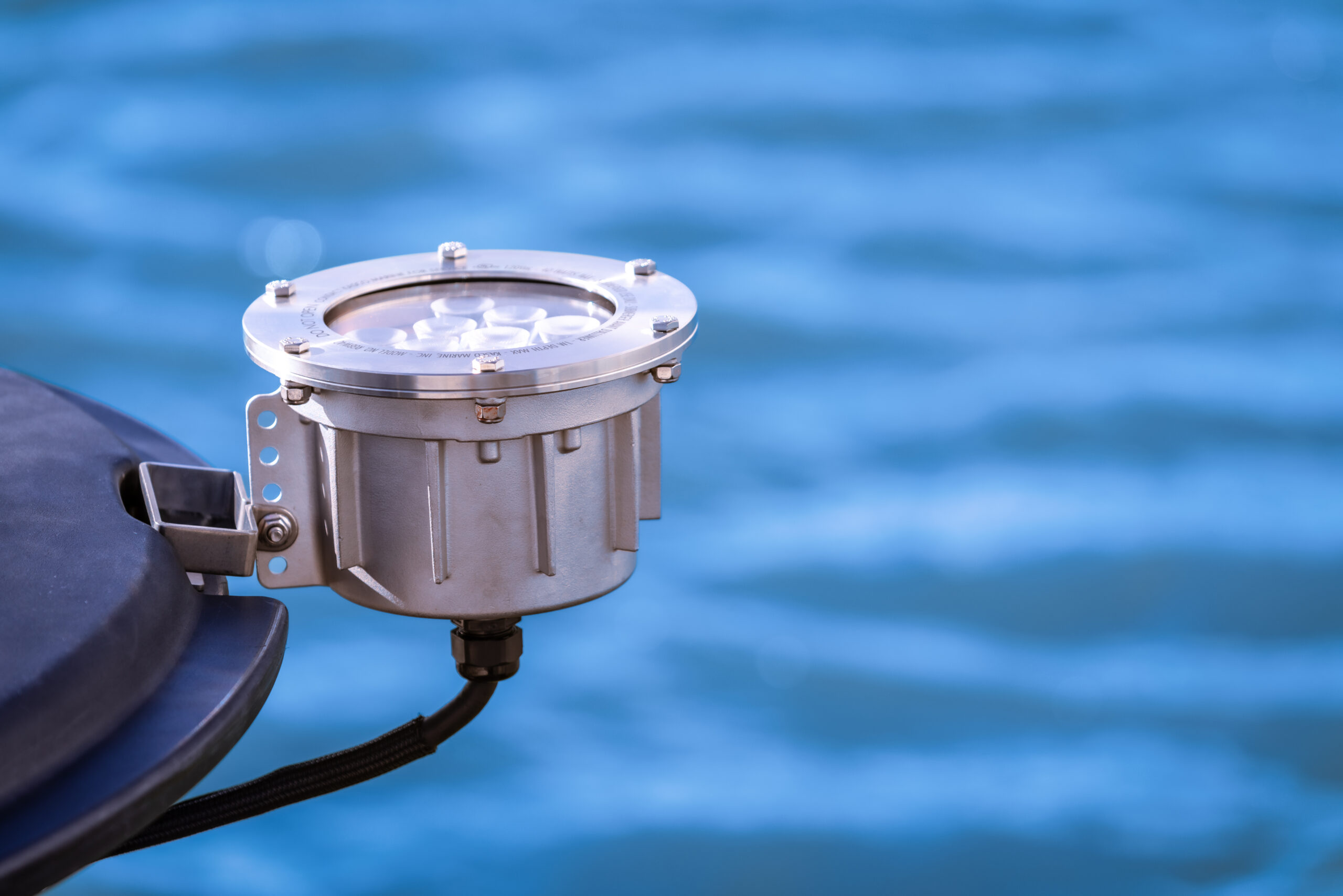

- Durable stainless steel fixtures for watertight operation
- 40 watts and 2,376 lumens per fixture
- 5-year warranty
- UL / CSA Listed
Product Notes:

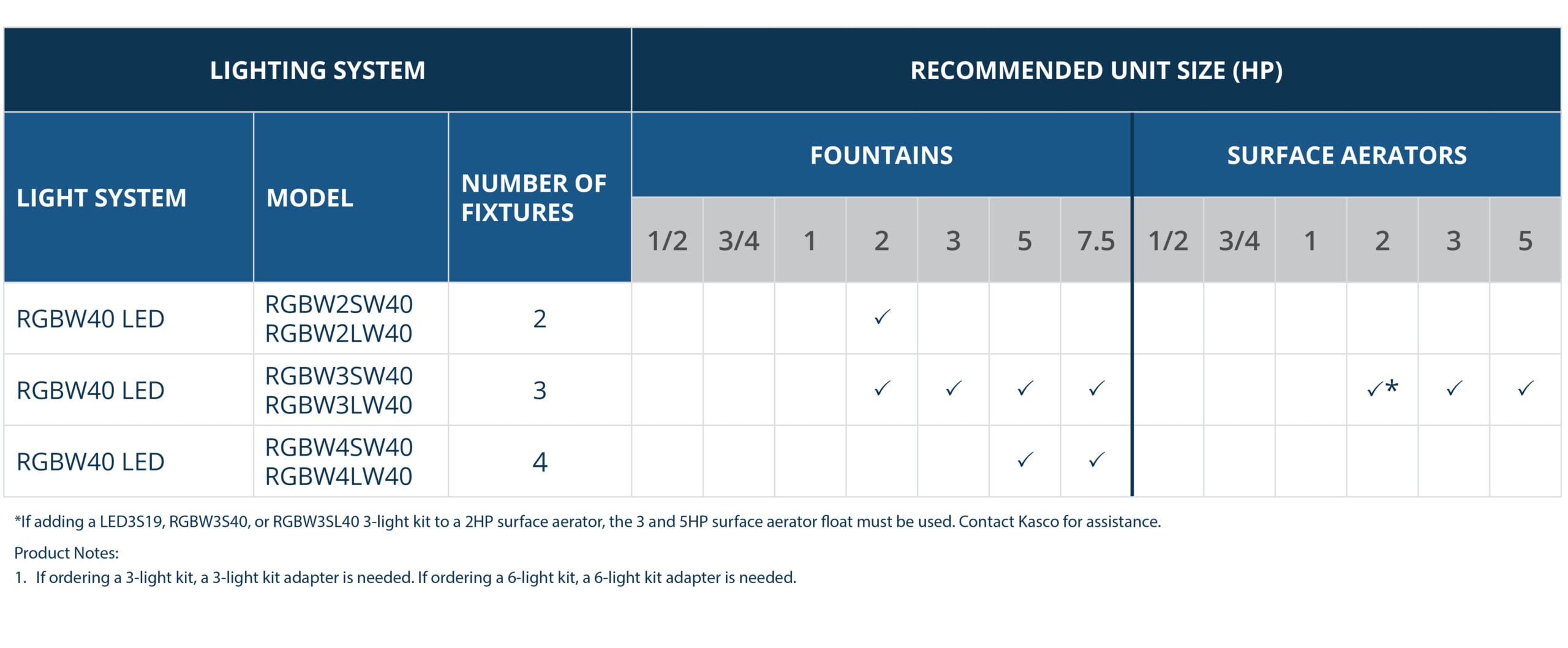

1. See Lighting Selection Guide on page 23 for lighting recommendations per HP.
2. Part number is the model combined with cord length (ex. RGBW2SW40-100).
3. Fixtures are daisy-chained together for easy installation.
4. Quick disconnect is included on main power cord.
5. Protective cord sleeving included on each fixture. 3 ft. of sleeving included on main power cord(s).
6. Wi-Fi models feature long-range operation.
7. RGBW40 3-fixture kits must use the 3HP and 5HP surface aerator 3-piece sectional float.
Wi-Fi Packages
| Part Number | Cord Length (ft.) | Number of Fixtures |
|---|---|---|
| RGBW2SW40-100 | 100 | 2 |
| RGBW2SW40-150 | 150 | 2 |
| RGBW2SW40-200 | 200 | 2 |
| RGBW2SW40-250 | 250 | 2 |
| RGBW2SW40-300 | 300 | 2 |
| RGBW2SW40-400 | 400 | 2 |
| RGBW2SW40-500 | 500 | 2 |
| RGBW3SW40-100 | 100 | 3 |
| RGBW3SW40-150 | 150 | 3 |
| RGBW3SW40-200 | 200 | 3 |
| RGBW3SW40-250 | 250 | 3 |
| RGBW3SW40-300 | 300 | 3 |
| RGBW3SW40-400 | 400 | 3 |
| RGBW3SW40-500 | 500 | 3 |
| RGBW4SW40-100 | 100 | 4 |
| RGBW4SW40-150 | 150 | 4 |
| RGBW4SW40-200 | 200 | 4 |
| RGBW4SW40-250 | 250 | 4 |
| RGBW4SW40-300 | 300 | 4 |
| RGBW4SW40-400 | 400 | 4 |
| RGBW4SW40-500 | 500 | 4 |
Push-Button Packages
| Part Number | Cord Length (ft.) | Number of Fixtures |
|---|---|---|
| RGBW2SL40-100 | 100 | 2 |
| RGBW2SL40-150 | 150 | 2 |
| RGBW2SL40-200 | 200 | 2 |
| RGBW2SL40-250 | 250 | 2 |
| RGBW2SL40-300 | 300 | 2 |
| RGBW2SL40-400 | 400 | 2 |
| RGBW2SL40-500 | 500 | 2 |
| RGBW3SL40-100 | 100 | 3 |
| RGBW3SL40-150 | 150 | 3 |
| RGBW3SL40-200 | 200 | 3 |
| RGBW3SL40-250 | 250 | 3 |
| RGBW3SL40-300 | 300 | 3 |
| RGBW3SL40-400 | 400 | 3 |
| RGBW3SL40-500 | 500 | 3 |
| RGBW4SL40-100 | 100 | 4 |
| RGBW4SL40-150 | 150 | 4 |
| RGBW4SL40-200 | 200 | 4 |
| RGBW4SL40-250 | 250 | 4 |
| RGBW4SL40-300 | 300 | 4 |
| RGBW4SL40-400 | 400 | 4 |
| RGBW4SL40-500 | 500 | 4 |
- Part number is the model combined with cord length (ex. RGBW2SW40-100).
- Fixtures are daisy-chained together for easy installation.
- Quick disconnect is included on main power cord.
- Protective cord sleeving included on daisy-chain cord between each fixture. 3 ft. of sleeving included on main power cord.
- Wi-Fi models feature long-range operation.
- If adding an RGBW30 3-light kit to a 2HP surface aerator, the 3 and 5HP surface aerator float must be used. Contact Kasco for assistance.
Downloads
RGBW40 LED Lights: Kasco RGBW LED Light Kits Manual
RBBW40 Wi-Fi Controller Manual: CW4 WI-FI Controller For RGBW WaterGlow Lighting
RGBW40 Push-Button Controller Manual: LSTA Push-Button Controller for RGBQ WaterGlow Lighting
