Description
Kasco Marine is pleased to offer the Kasco WaterGlow Stainless Steel LED Lighting Kits, the ultimate decorative and/or event lighting for your JF or VFX floating fountains. Enhance the beauty of your pond with a premium stainless steel LED lighting kit designed for fountains and aerators. Featuring high-output 1,700-lumen fixtures, interchangeable colored lenses, long cable options up to 500 feet, and rugged UL/CSA-listed construction, this system provides dependable performance season after season.

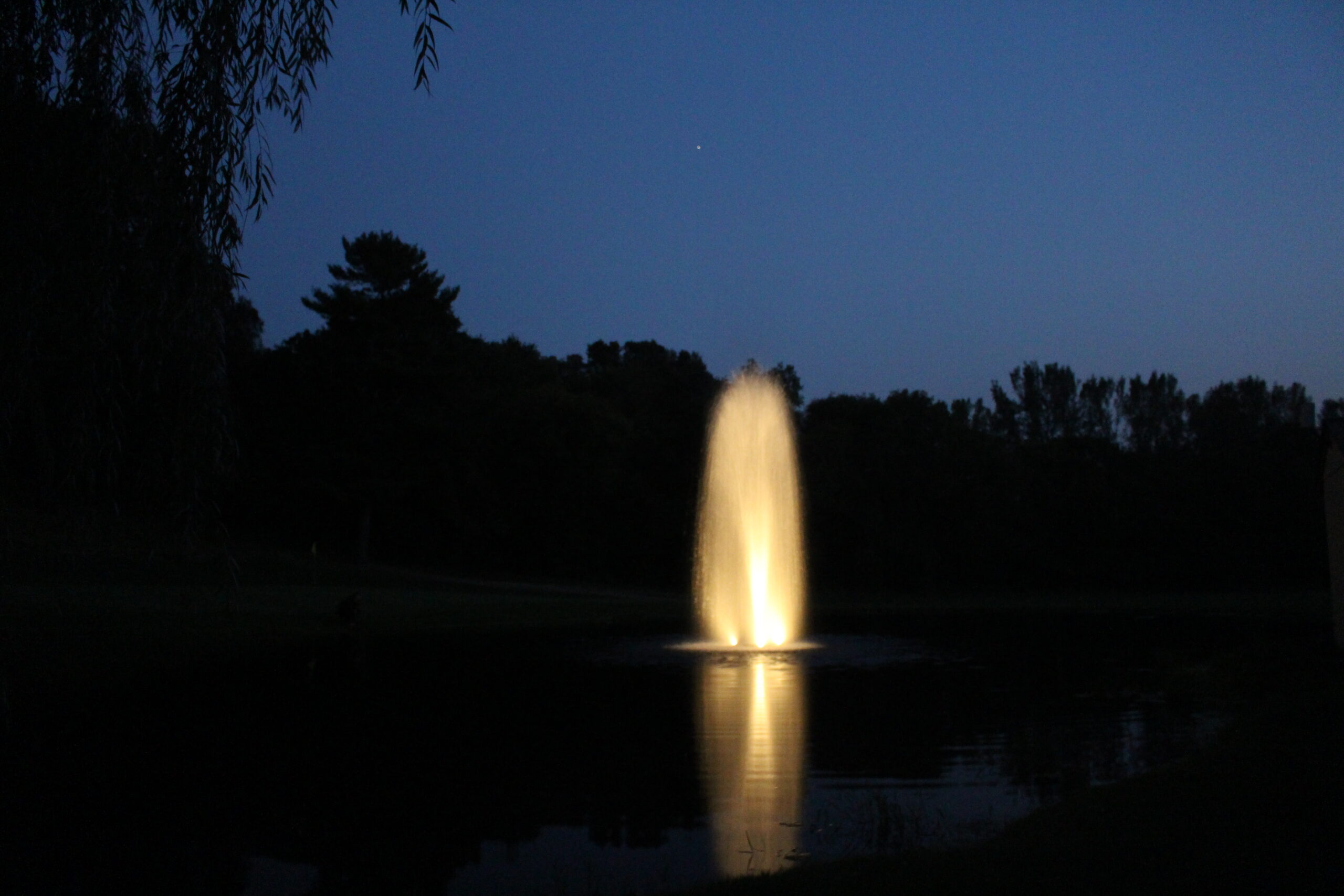

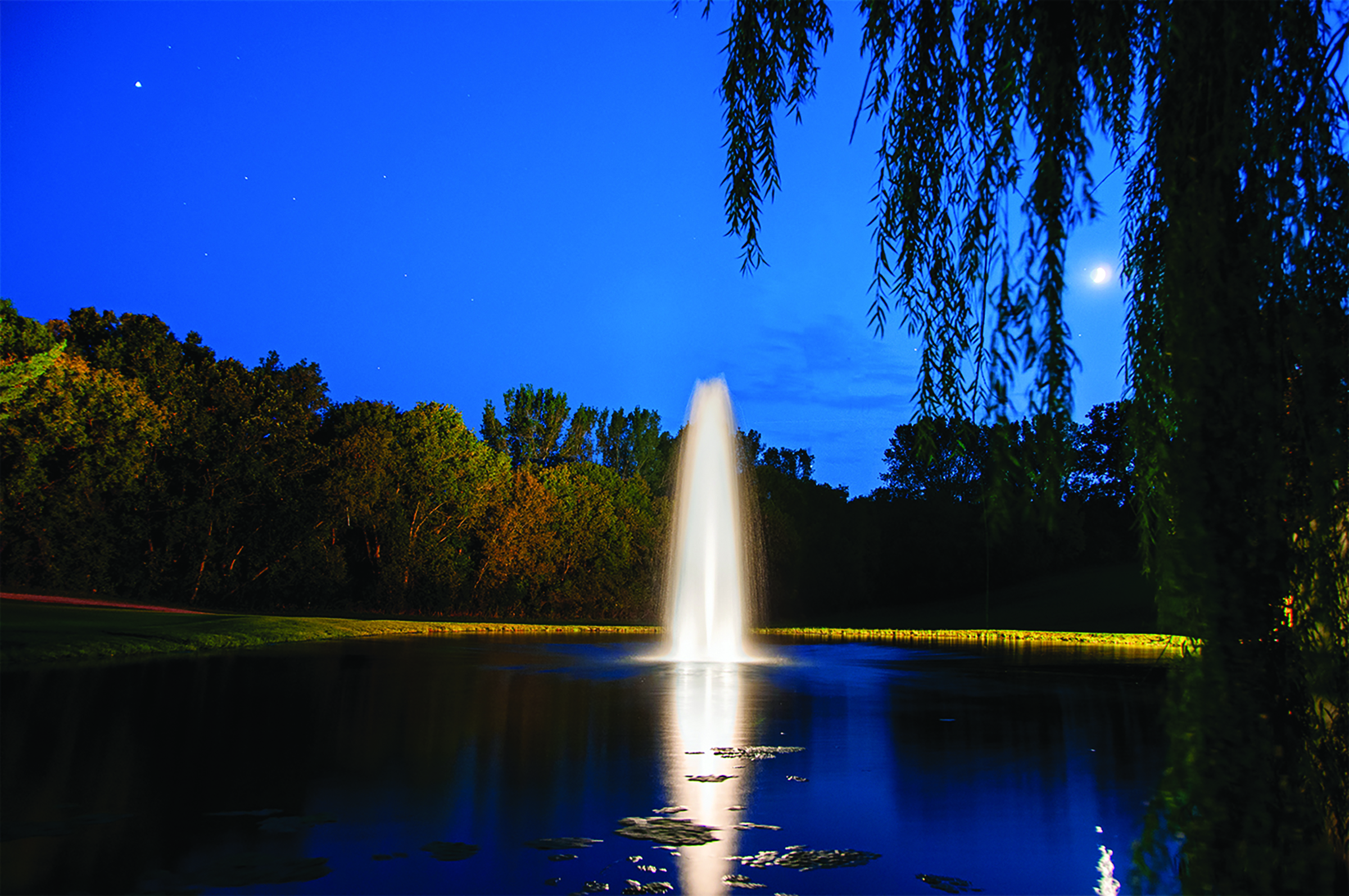

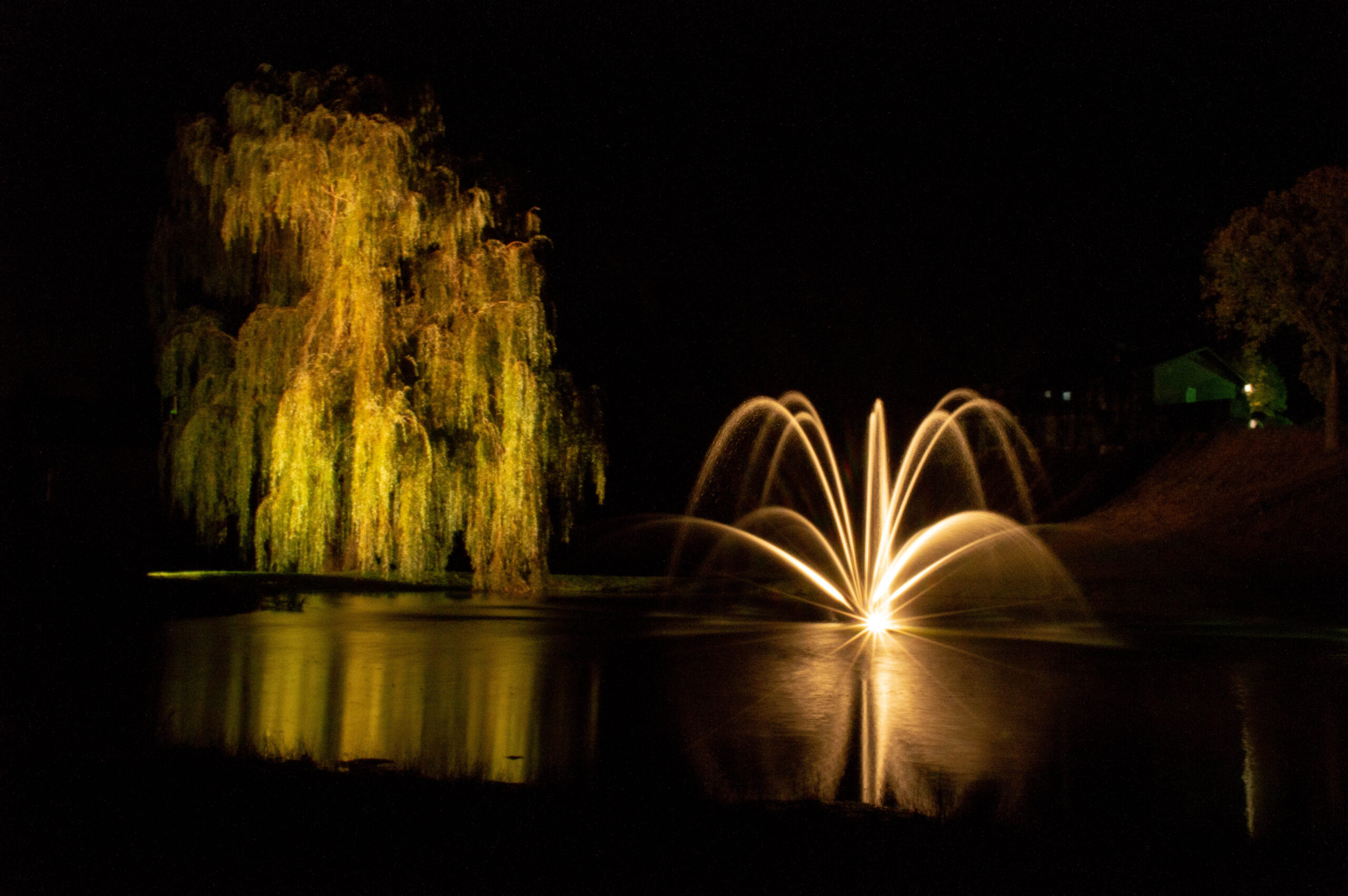

Kasco’s Stainless Steel LED light kits will extend your display into the night. Designed to withstand tough aquatic environments like salt water, these light kits will add a rich, dramatic aesthetic to your waterfront. Stainless Steel LED lighting systems allow you to choose from 5 color options through interchangeable lenses.

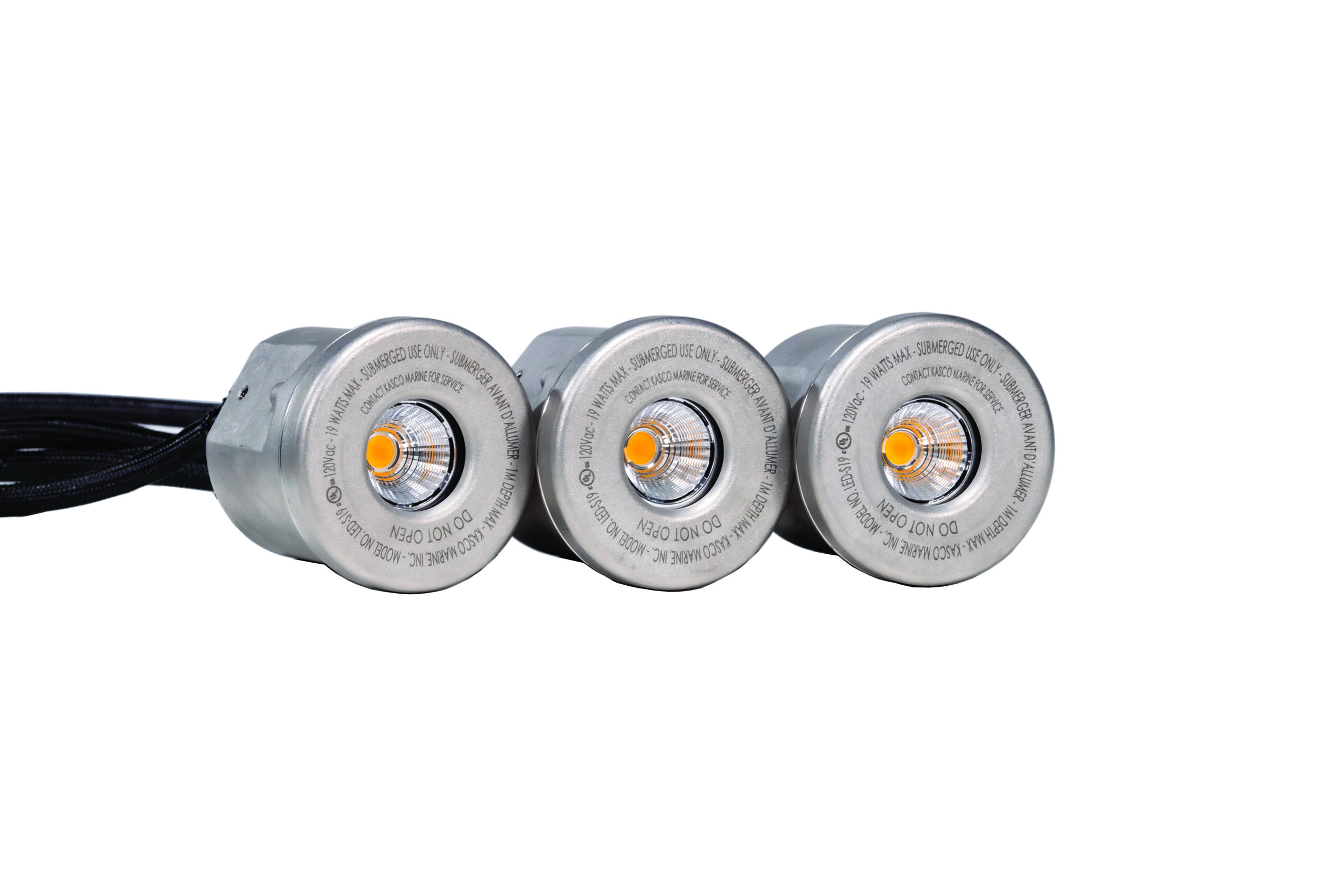

Each fixture is daisy-chained together for easy installation.
Available for J Series Fountains, VFX Fountains, and Surface Aerators in 3- or 6-fixture kits.
Warranty period: 3 years
Stainless Steel LED: Illumination in All Environments

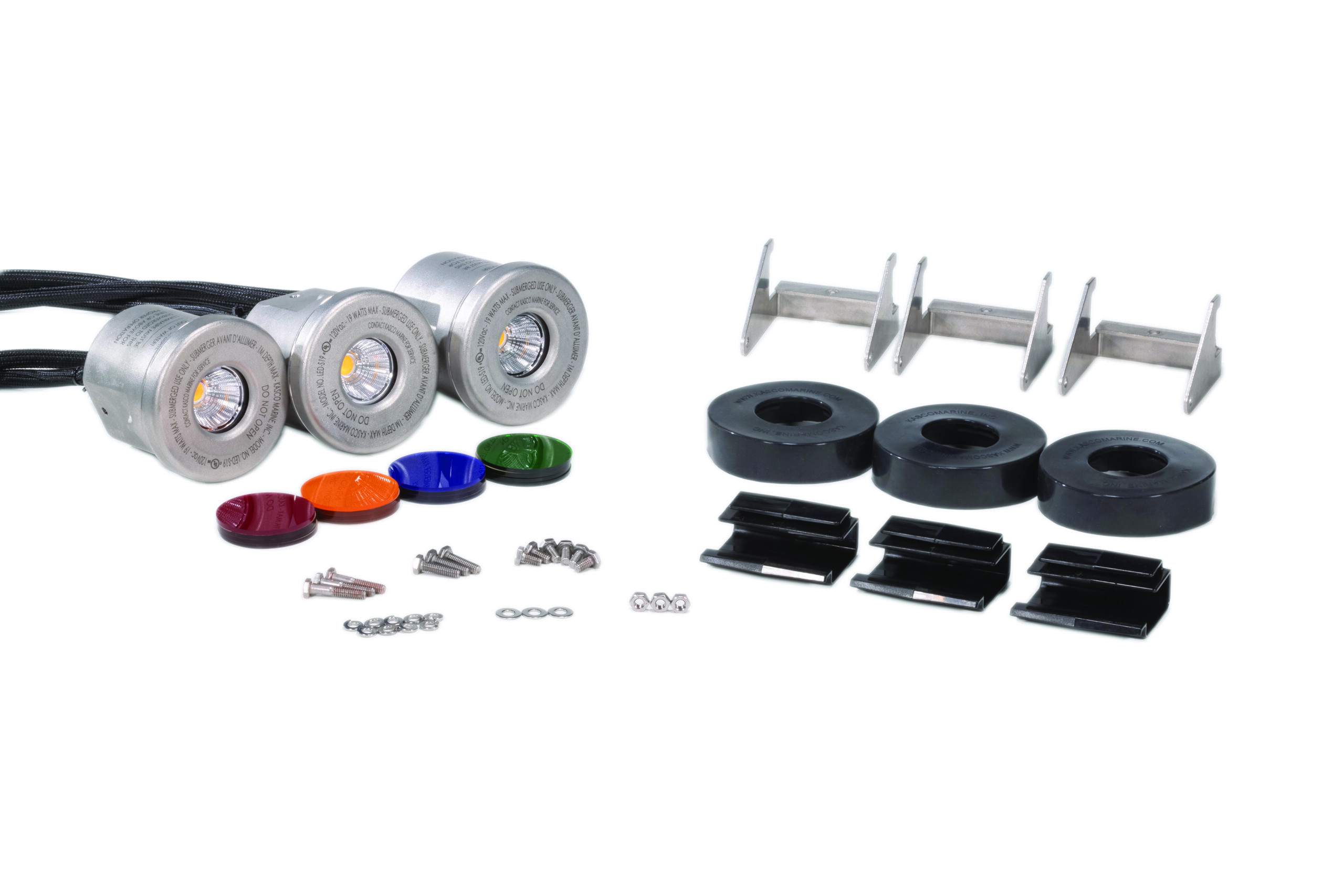

- Includes light fixtures, brackets, snap-on clips, power cord with quick disconnect, colored lenses, and lens caps
- 3- and 6-fixture kits available in multiple power cord lengths
- Runs on 120Vac power
Color Options

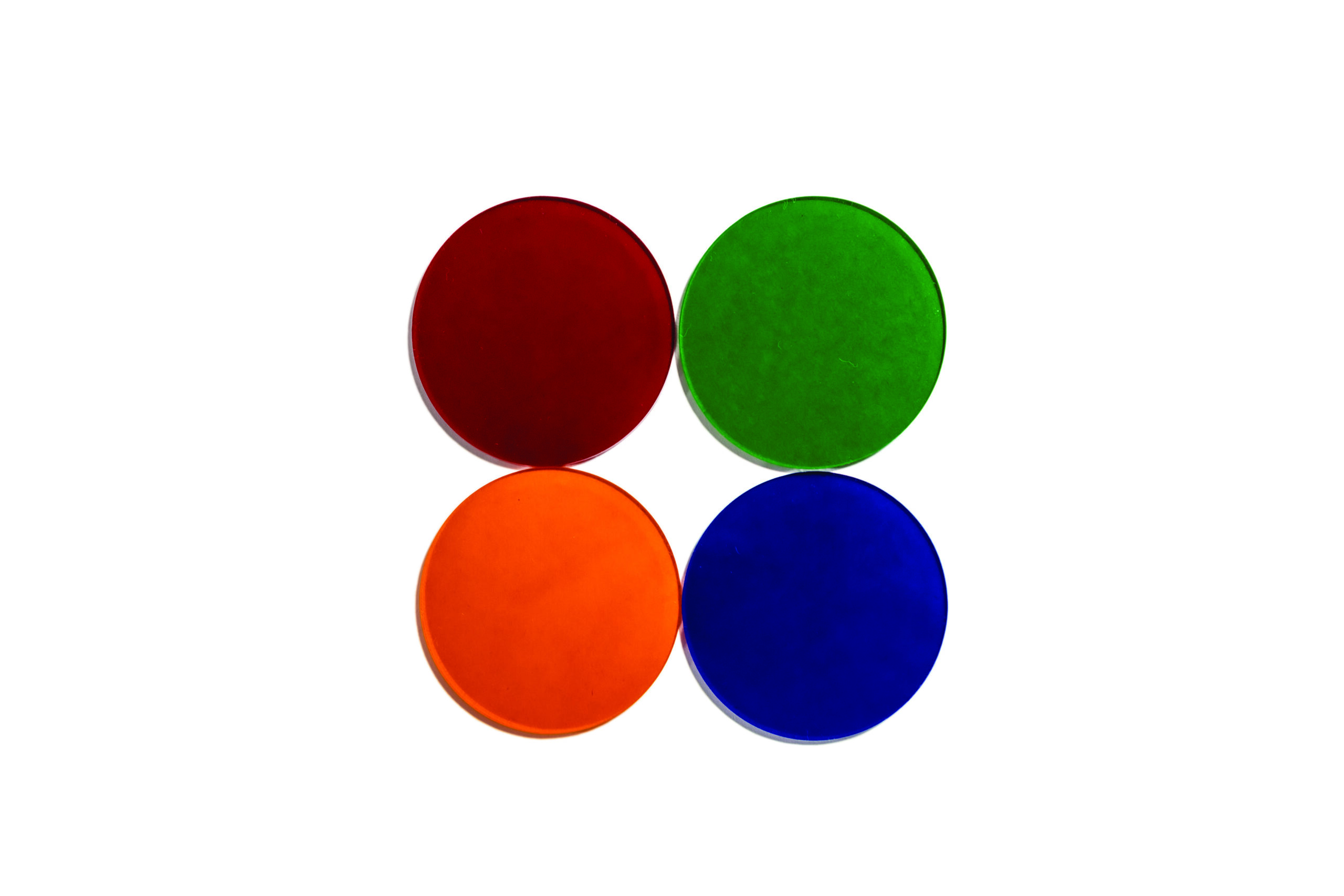

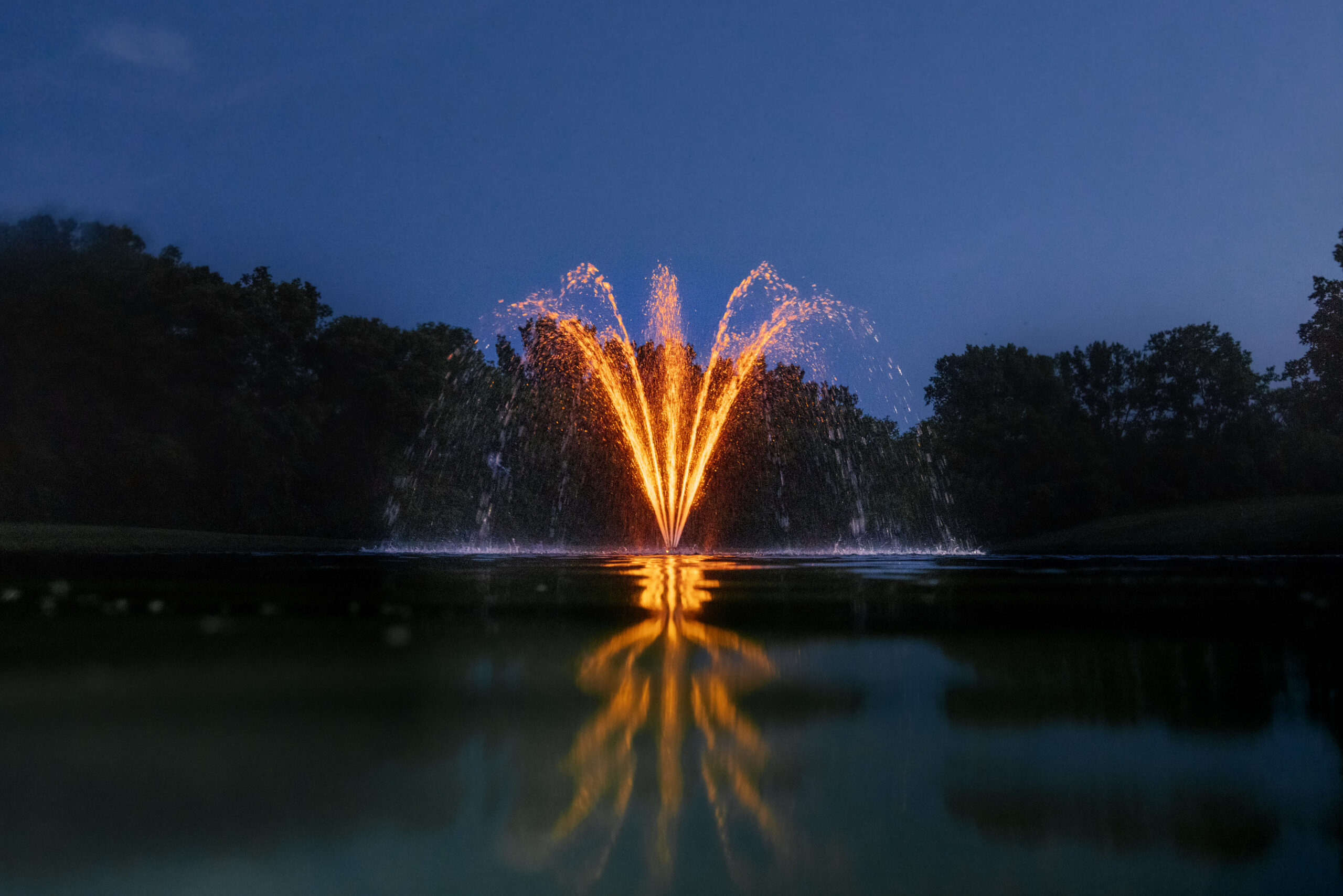

Displays white and includes red, green, blue, and amber lenses with lens caps
Product Notes:

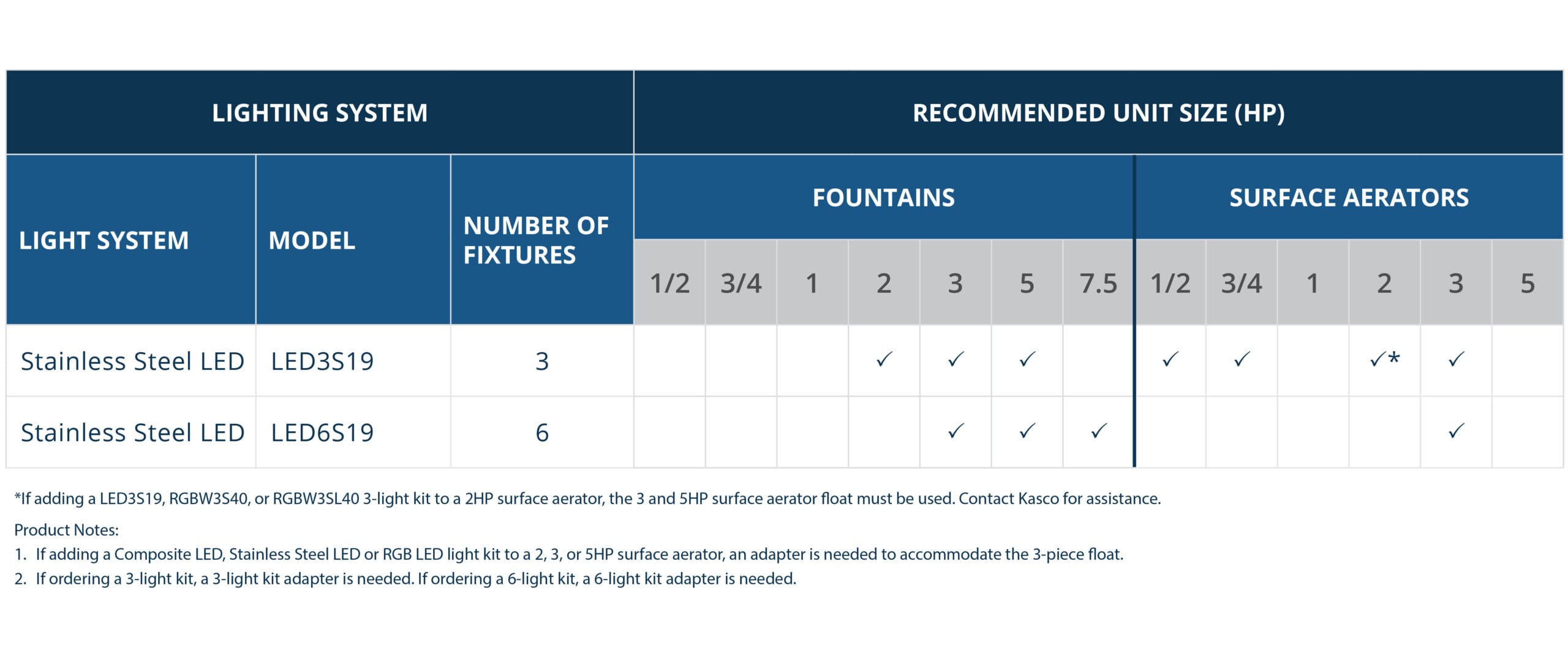

1. See Lighting Selection Guide on page 23 for lighting recommendations per HP.
2. Fixtures are daisy-chained together for easy installation.
3. Quick disconnect is included on main power cord.
4. Protective cord sleeving included on each fixture. 3 ft. of sleeving included on main power cord(s).
5. Universal Lighting available for non-Kasco units. Contact Kasco for details.
6. When adding a Stainless Steel LED light kit to a 2, 3, and 5HP surface aerator, be sure to also order a 3-light kit adapter or 6-light kit adapter. See page 67.
7. S19 3-fixture kits must use the 3HP and 5HP surface aerator 3-piece sectional float.
3 Fixture Kits Recommended for 2 & 3 HP Units
| Part Number | Cord Length (ft.) | Number of Fixtures | Fixture Wattage | Color | Included Lenses |
|---|---|---|---|---|---|
| LED3S19-050 | 50 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-100 | 100 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-150 | 150 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-200 | 200 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-250 | 250 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-300 | 300 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-400 | 400 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
| LED3S19-500 | 500 | 3 | 19 | Classic White | Red, Green, Blue, Amber |
6 Fixture Kits Recommended for 3-7.5 HP Units
| Part Number | Cord Length (ft.) | Number of Fixtures | Fixture Wattage | Color | Included Lenses |
|---|---|---|---|---|---|
| LED6S19-050 | 50 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-100 | 100 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-150 | 150 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-200 | 200 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-250 | 250 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-300 | 300 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-400 | 400 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
| LED6S19-500 | 500 | 6 | 19 | Classic White | Red, Green, Blue, Amber |
- Fixtures are daisy-chained together for easy installation.
- Quick disconnect is included on main power cord.
- Protective cord sleeving included on daisy-chain cord between each fixture. 3 ft. of sleeving included on main power cord.
- If adding a Stainless Steel LED kit to a 2, 3, or 5HP surface aerator, an adapter is needed to accommodate the 3-piece float. Contact Kasco for assistance.
Downloads
PDF File: Kasco Stainless LED Light Kits Manual
