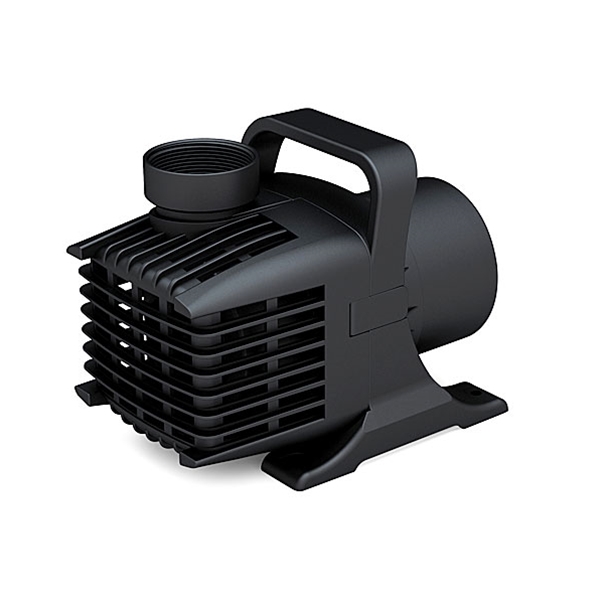

Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump – 5,150 GPH – FREE SHIPPING

$157.99$357.99

5,150 GPH. The Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump is an ultra-high efficiency asynchronous pump that produces more water flow per Watt than ever.

$357.99
$157.99

Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump – 5,150 GPH

The Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump is an ultra-high efficiency asynchronous pump that produces more water flow per Watt than ever. Designed to fit in small spaces, the Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump is clog-resistant, hard water tolerant and energy efficient.

PondUSA.com is an Atlantic Water Gardens Approved Reseller
PondUSA.com is an Atlantic Water Gardens Approved Reseller


Key Features

  • The Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump features a 2″ inlet and outlet for less restriction and greater flows
  • Quarter turn volute provides access to impeller without tools
  • Heavy duty pre-filter locks into place – large openings and large surface area resist clogging
  • Three-vane hybrid impeller improves water flow and passes solids


Warranty

  • 3-year manufacturer’s limited warranty


IMPORTANT

  • The Atlantic Water Gardens TidalWave 3 TT5000 Pond PumpĀ must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet
  • TheĀ Atlantic Water Gardens TidalWave 3 TT5000 Pond Pump is not approved for use in swimming pools or salt water


Specifications

Atlantic Water Gardens Part Number TT5000
Maximum Flow Rate 5,150 GPH
Flow Rate @ 5 Ft. of Head 4,255 GPH
Flow Rate @ 10 Ft. of Head 3,170 GPH
Flow Rate @ 15 Ft. of Head 1,615 GPH
Flow Rate @ 20 Ft. of Head 395 GPH
Maximum Head 17 ft.
Power Consumption 310 W / 2.5 A
Discharge 2″ FPT (female threaded)
Power Cord Length 20 ft.
Voltage 115 V, 60 Hz.
Dimensions 9.25″ L x 6″ W x 7″ H



Atlantic Water Gardens TidalWave 3 Pond Pumps - Flow Chart
Atlantic Water Gardens TidalWave 3 Pond Pumps – Flow Chart



Accessory Products

Atlantic WAter Gardens Variable Speed Controller

Atlantic Water Gardens Variable Speed Controller (TWVSC)

The Atlantic Water Gardens Variable Speed Controller varies the output of asynchronous pumps wirelessly by remote control or by smart phone by downloading the Android or Apple App! Unlike integrated variable speed controllers, where any failure of pump or controller renders everything non-operational, the Atlantic Water Gardens Variable Speed Controller operates separately from the pump. The Atlantic Water Gardens Variable Speed Controller allows you to set both on and off times as well as drop to 25 % of the total flow, in 10 levels of adjustment. Overriding the control box with the remote control does not change the settings; pump will return to the preset on/off times after the next cycle. When powering on, the Variable Speed Controller sends full power to the pump to get it started and then dials it back down to the level it was on when last turned off.

  • Digital read out displays time of day and on/off times
  • Control remotely by smartphone with Android or Apple App
  • 2.4GHz remote control
  • Rugged weatherproof housing
  • 6 foot power cord
  • Works with asynchronous pumps up to 800 Watts
  • 3-year manufacturer’s limited warranty

The Atlantic Water Gardens Variable Speed Controller is as easy to synchronize as it is to control. To synchronize the remote to the Variable Speed Controller, simply plug in the control box and it will automatically search for the nearest remote control. Touching any button on the remote will immediately synchronize it to the control box. To synchronize multiple units to one remote, simply plug in the additional control box you want to synchronize and touch any button on the remote you want to pair with it.
